How to Configure MB Star SD Connect C4 DoIP Multiplexer?



The new SD connect C4 (1:1 clone of the original) is able to work for DoIP. It’s the only C4 that supports ethernet communication (DoIP). Tested no issues on new mercedes with doip.

To use new MB Star SD Connect C4 DoIP diagnostic scanner, you need to configure it first.  Follow steps below to configure SD Connect C4 DoIP multiplexer:
4-1
1. Go to local network connection
4-2

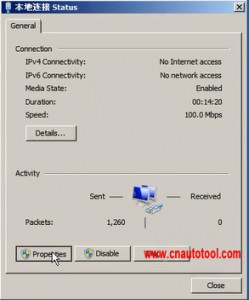

2. Press Properties
4-3

3. Choose Internet Protocol Version 4 (TCP/IPv4), press OK to continue

4-4

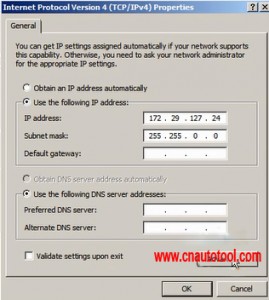

4. Enter IP address

IP address: 172.29.127.24

Subnet mask: 255.255.0.0

4-5

5. Click on Advanced
4-6
6. Click on Add to configure DoIP IP address

4-7 4-7

7. Set DoIP IP address to 169.254.0.** (i.e 169.254.0.45)

8. Click on OK to finish configuration.

FYI:

The new SD connect C4 DoIP (1:1 clone of the original) is able to work for DoIP.

It’s the only C4 that supports ethernet communication (DoIP).

Have tested no issues on new mercedes with doip.
